Seamless Digital Continuity: Xpedition EDM & Teamcenter Integration





In today’s electronics landscape, true digital continuity requires more than just design excellence, it demands tight integration between ECAD and PLM environments.



The Siemens synergy between Xpedition EDM and Teamcenter delivers exactly that. This best-in-class integration ensures a fully synchronized flow of library, design, and manufacturing data across the entire product lifecycle, eliminating silos and reducing manual intervention.



Key capabilities include:

• Supply chain–driven library management
  Early access to rich manufacturer data, including form-fit-function equivalents, enables smarter component selection and mitigates supply chain risks.
• Robust company part strategy
  Multiple manufacturer part numbers mapped to a single internal part number ensure design resilience and flexibility.
• Automated library synchronization
  EDM continuously aligns component data, metadata, and 3D model representations with Teamcenter—ensuring a single source of truth.
• Variant-aware design collaboration
  PCB variants defined in ECAD are seamlessly transferred into Teamcenter, enabling accurate collaboration with mechanical engineering and downstream stakeholders.
• Controlled release through PLM
  Design baselines automatically collect all required manufacturing data, enforcing completeness and enabling structured release workflows within Teamcenter.
• Consistent and structured manufacturing outputs
  From bare board data to variant-specific assembly documentation, all deliverables are organized and managed centrally in PLM.

The result is a closed-loop, model-based engineering process where electronics and mechanical domains collaborate efficiently, reducing errors, accelerating time-to-market, and ensuring design integrity.



Watch the full video to see how Xpedition EDM and Teamcenter enable a truly connected digital thread from component definition to product release.

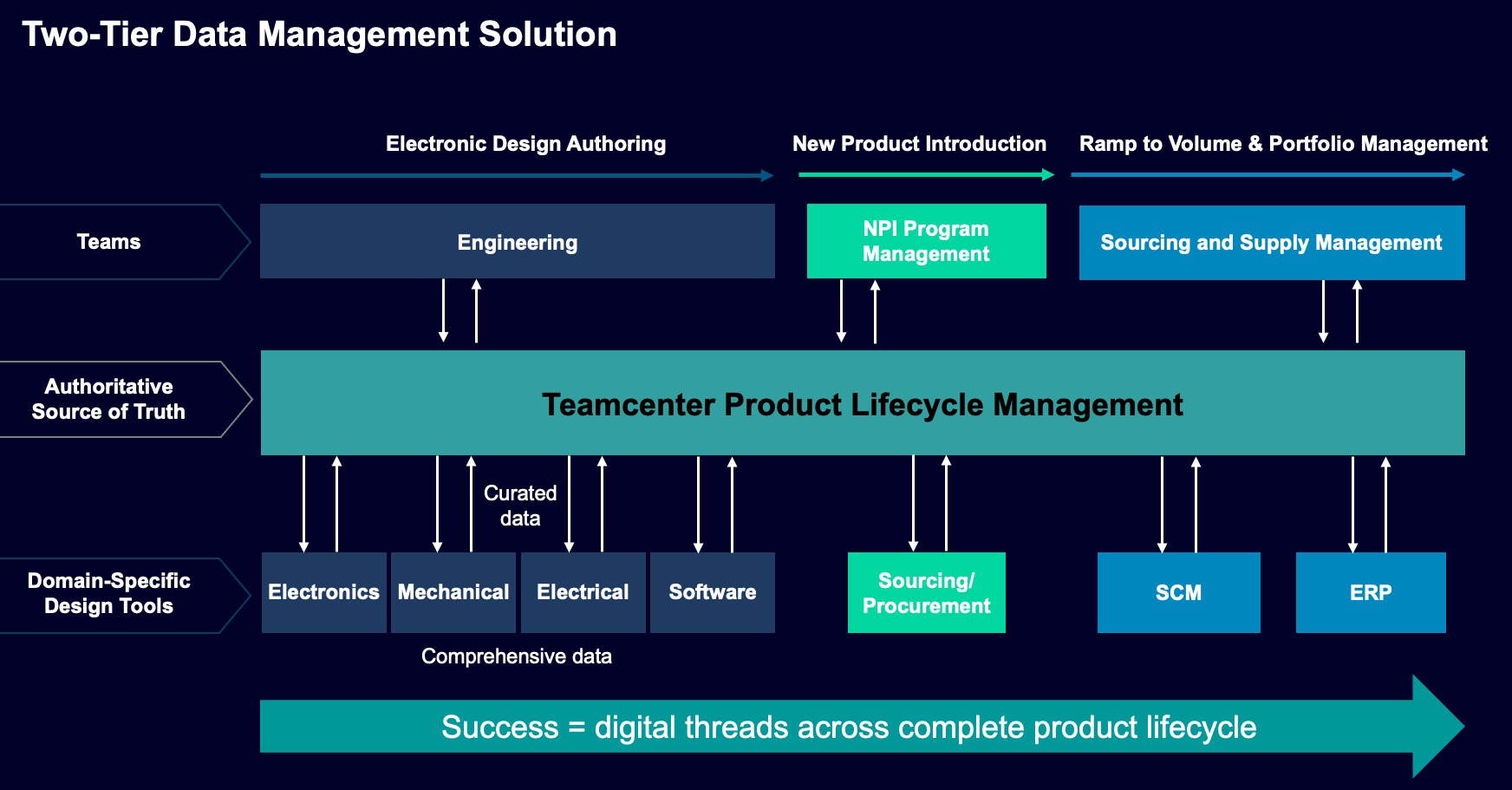

Siemens provides a two-tier data management solution that provides the right data to the right people at the right time.





Engineering tools require large amounts of data to do the job. Domain-specific tools are needed to manage engineering data and to allow team members to collaborate efficiency in an environment tailored to their job. Much of this data is specific to the engineering discipline, but some must be shared across disciplines to support integrated product co-design.



Teamcenter provides the foundation to facilitate sharing of specific data across domains to create the digital threads necessary for engineering.
Beyond engineering, Teamcenter supports enterprise-wide processes for New Product Introduction, Sourcing, and Production.



One way to describe this two-tiered solution is that the individual domains such as electronics engineering manage their own comprehensive content, while Teamcenter manages curated content needed for multi-domain collaboration and product creation.



For more information feel free to contact us.
