HyperLynx DC Drop PE

Power integrity is one of the biggest problems in electronic product design. Modern ICs, digital and analog alike, require multiple supply voltages to operate.

HyperLynx DC Drop PE provides simulation results within seconds, accelerates product design, reduces design respins and ensures reliability. It is a perfect professional tooling allowing PI analysis for only €1.995 per year.

Request your free trial license today!

start trial

Major benefits:

Easy to use

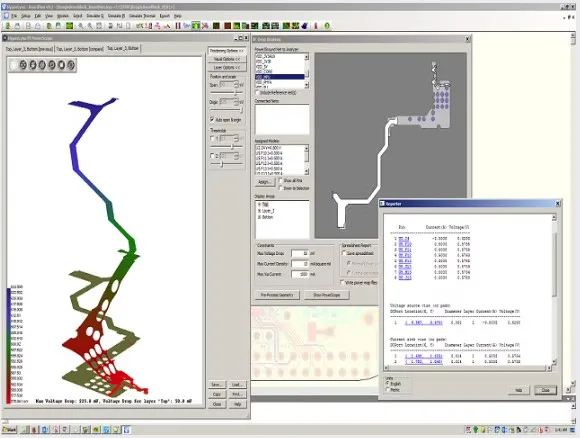

Quickly analyzes voltage drop of power supply rails due to copper losses found in power plane shapes, power traces, and neck-downs in dense layouts
Interactive and batch-mode simulation capability
Allows easy exploration of different conductor materials and trace thicknesses
Identifies areas of excessive current density
Supports Altium Designer, orCAD, Allegro and CADSTAR

HyperLynx PE Bundles

HyperLynx PE Bundles: affordable and easy to use powerful HyperLynx functionality, supporting Altium Designer, OrCAD, Allegro and CADSTAR

HyperLynx DDR PE

HyperLynx DDR PE was created especially for Altium, Allegro CADSTAR and OrCAD engineers who need powerful analysis of DDR1, DDR3 and LPDDR 1/2/3 designs.

HyperLynx DRC PE

HyperLynx DRC PE provides a customizable and powerful electrical rule checker for PCB designs created in Altium Designer, Allegro, OrCAD or CADSTAR
